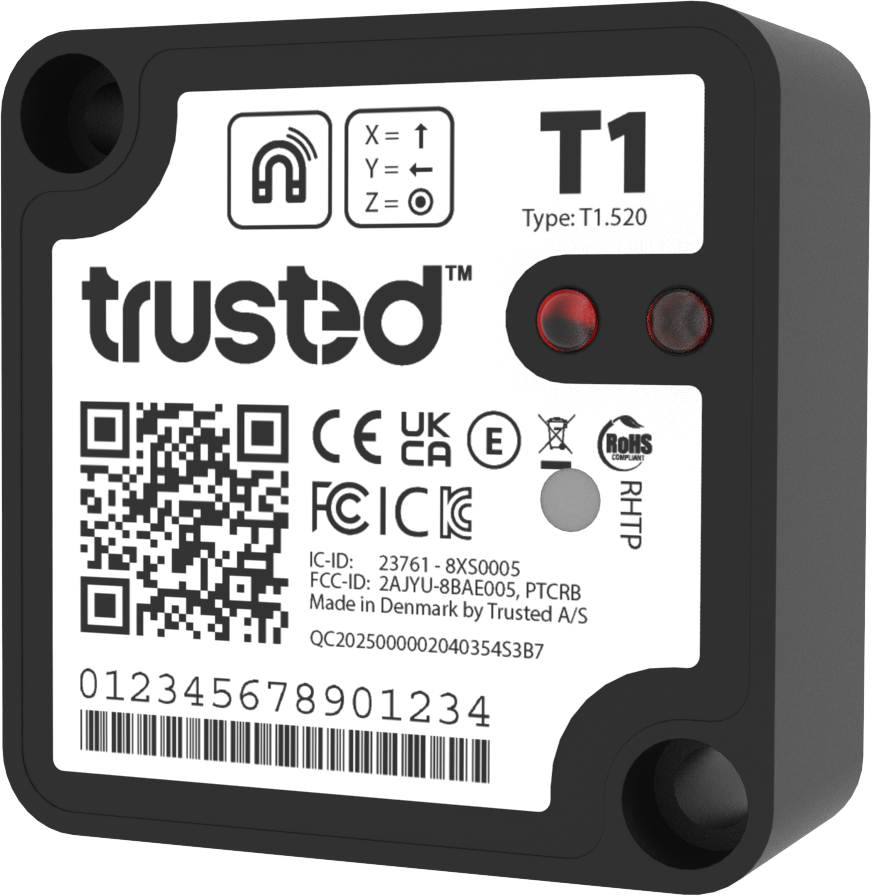

T1
IoT Tracking Device
The T1.500 is the next generation of Trusted tracking technology — redesigned with purpose, refined through customer feedback, and built to perform where it matters most.
With a rugged design, replaceable batteries, and advanced sensor capabilities, it is ready to take on the toughest monitoring challenges.
Unique Edition Features
Sensors and trackable data
Motion
Detect the smallest vibrations of assets to monitor utilization
Shock
Monitor if assets have experienced shock exceeding G-force impacts
Tilt
Monitor if assets have tilted more than a certain pre-set angle
Position
Track your assets and gain access to accurate location
Temperature
Monitor temperature levels according to predefined thresholds
Light
Monitor if assets have been exposed to light without approval
Utilization data
Analyze running hours to minimize downtime and perform predictive maintenance
Specifications
Battery Life
Typically 3000 transmissions based on 1 transmission/day (2 batteries inserted)
Battery Package
2 x replaceable ER14505M (3,6 volt each)
Lithium Content
< 2 gram (0.6 gram in 1 pcs ER14505M)
Data Log
Stores 300 data entries (as default) on internal storage incl. position and sensor data
SIM
Embedded in the device – subscription required
IP68 Rating
Fully protected against dust and immersion in water beyond 1 meter
Network Technology
High-speed data transmission using LTE Cat.1bis
Positioning Technology
Internal GPS or WiFi / Mobile network triangulation if GPS signal is unavailable
Weight
125 grams excl. batteries, 160 grams incl. batteries
Battery Change
4 x M3 machine screws
Temperature, Operating
-30 °C to +85 °C
Temperature, Storage
+30 °C max (recommended)

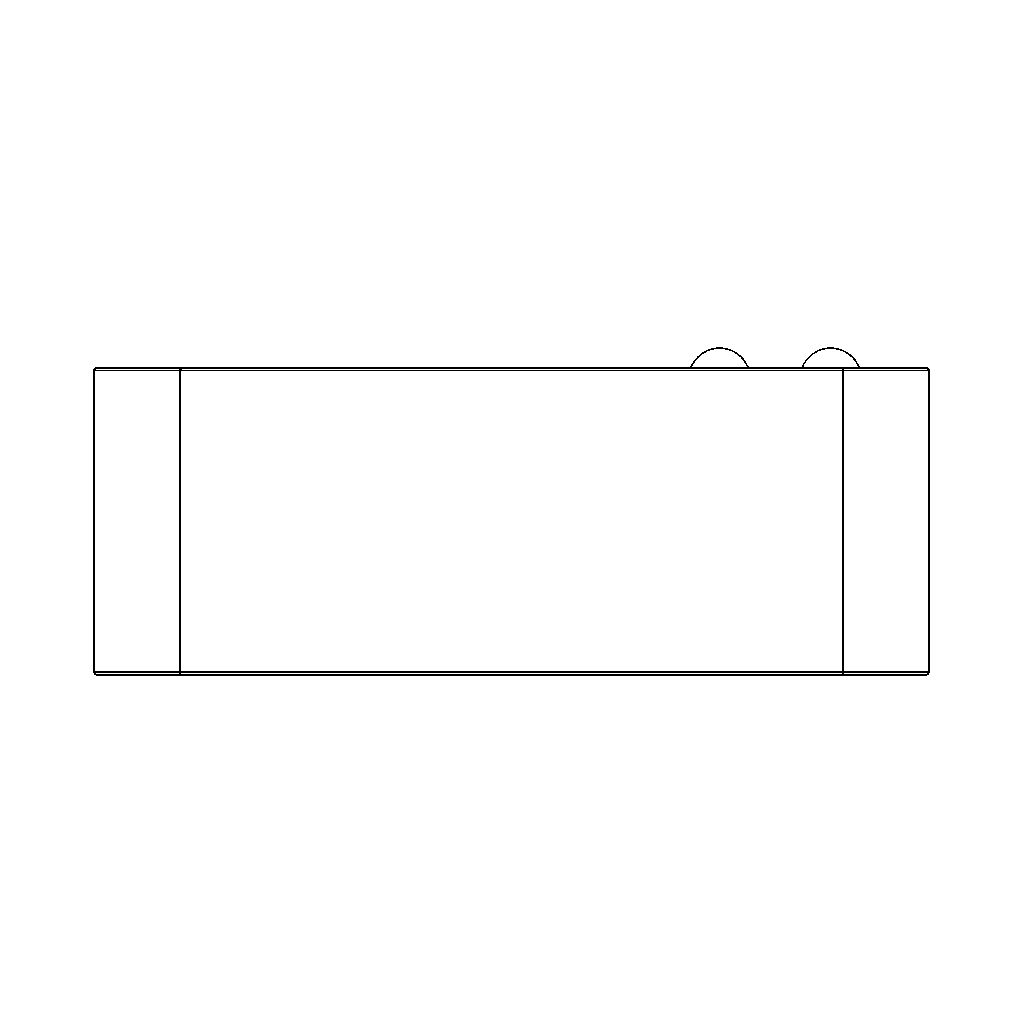

Device Dimensions
-
Length
68 mm
-
Width
68 mm
-
Height
28.5 mm
Frequently asked questions
What are the key differences between the Standard, BLE, and RHTP editions?
Standard Edition includes a radio beacon for proximity detection and supports external RFID and RHT tags, which extend the device’s monitoring capabilities.
BLE Edition adds Bluetooth Low Energy (BLE) for local wireless communication, enabling nearby interaction between your phone and the Trusted Mobile App outside network coverage.
RHTP Edition includes sensors for monitoring Relative Hudimity, Temperature, and Air Pressure, making it ideal for tracking condition-sensitive assets during storage or transport.
Where can I access and analyze data insights?
All data collected by the devices is accessible through the Trusted Data Portal. The portal allows you to track and monitor asset data such as position, utilization, running hours, and more – visualized on maps, in graphs, and through detailed reports.
Can I integrate data into my own systems?
Yes, we offer integration through Trusted API and AEMP, enabling seamless data integration to your internal platforms or third-party solutions.
How does the tracking device transmit data?
Our devices use low-power LTE Cat-M1 technology with 2G fallback to ensure reliable global connectivity. Data can be sent at user-defined intervals or triggered by specific events (configuration on the platform).
What if the tracking device is out of coverage?
If the device is outside network coverage, it will log data internally and automatically transmit it once connectivity is restored, ensuring no data is lost.
How do I choose the right tracking device for my industry and business needs?
Standard Edition is ideal for construction, including hydraulic attachments, theft and recovery protection, fleet management, transportation of high-stake breakbulk, and general logistics. It supports proximity detection and external RFID/RHT tags for enhanced asset tracking.
BLE Edition is well-suited for environments with limited connectivity, such as remote construction sites, indoor facilities, and mining operations. It allows local data collection via the Trusted Mobile App, making it ideal for areas with intermittent network access.
RHTP Edition is designed for use in offshore wind turbine installations, during transportation of sensitive freight, or in environments where humidity, temperature, and air pressure need to be closely monitored to protect equipment, cargo, and stored goods.
How do I install the tracker?
Trusted hardware is designed for easy installation using either screws or magnets, depending on your use case.
- Screws are ideal for permanent installation.
- A magnet kit is recommended if you need the flexibility to move the device between different assets.
Both installation kits are available from Trusted (sold separately).
For more information, please read our guide Install and Mount Trusted Hardware or visit our Help Center.
